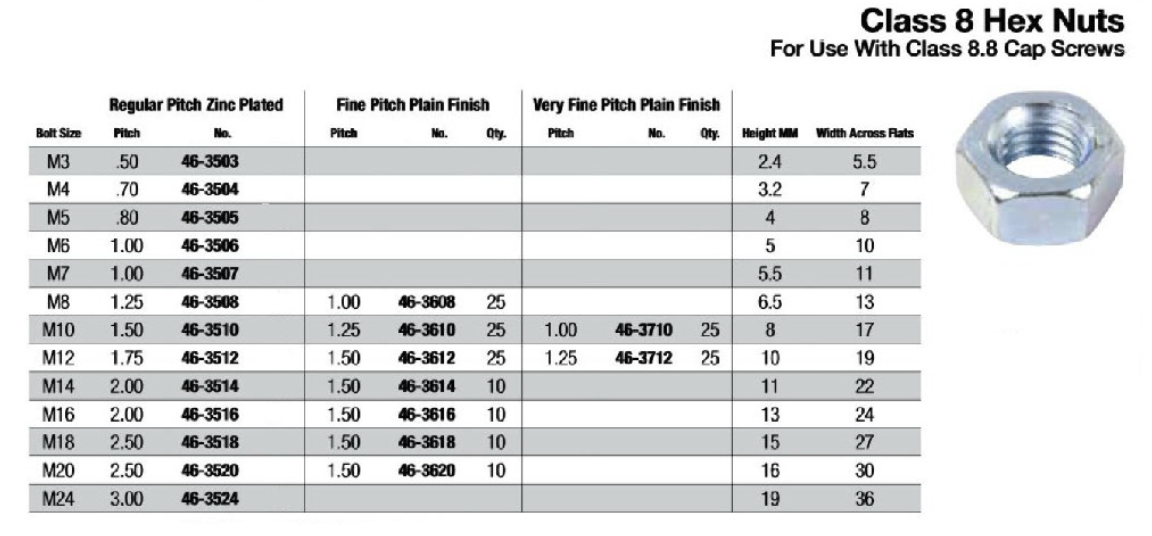

Use With: Class 8.8 Cap Screws
| Bolt Size | Pitch | Zinc Plated # | Fine Pitch # | Very Fine Pitch # | Height (MM) | Width Across Flats |
|---|---|---|---|---|---|---|
| M3 | 0.5 | 46-3503 | 2.4 | 5.5 | ||
| M4 | 0.70 | 46-3504 | 3.2 | 7 | ||
| M5 | 0.80 | 46-3505 | 4 | 8 | ||
| M6 | 1.00 | 46-3506 | 5 | 10 | ||
| M7 | 1.00 | 46-3507 | 5.5 | 11 | ||
| M8 | 1.25 | 46-3508 | 46-3608 | 6.5 | 13 | |
| M10 | 1.25 | 46-3510 | 46-3610 | 46-3710 | 8 | 17 |
| M12 | 1.75 | 46-3512 | 46-3612 | 46-3712 | 10 | 19 |
| M14 | 2.00 | 46-3514 | 46-3614 | 11 | 22 | |
| M16 | 2.00 | 46-3516 | 46-3616 | 13 | 24 | |
| M18 | 2.50 | 46-3518 | 46-3618 | 15 | 27 | |
| M20 | 2.50 | 46-3520 | 46-3620 | 16 | 30 | |
| M24 | 3.00 | 46-3524 | 19 | 36 |
| Diameter | Pitch | Width Across Flats | Part # |
|---|---|---|---|
| M8 | 1.25 | 12 MM | 46-4008 |
| M10 | 1.25 | 14 MM | 46-4010 |
| M10 | 1.50 | 14 MM | 46-4011 |
| M12 | 1.25 | 17 MM | 46-4012 |
Note: JIS = Japanese Industrial Standard. Class 8. Heat treated. Zinc plated.
