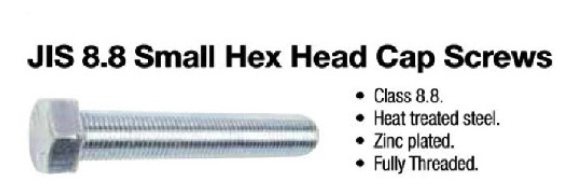

Compact, zinc-plated Class 8.8 hex head cap screws designed to meet JIS standards. Available in M8, M10, and M12 sizes.
These JIS 8.8 Small Hex Head Cap Screws are fully threaded and manufactured from heat-treated Class 8.8 steel for high-strength performance in mechanical applications. Featuring a smaller JIS-style hex head, they are ideal for applications where space is limited or a compact fastener is preferred.
Zinc plated for corrosion resistance and available in multiple thread diameters (M8, M10, M12) and lengths. Head size and profile conform to Japanese Industrial Standard (JIS) specifications.
| Dia. | Pitch | Length | Part No. | Head Height | Head Width |
|---|---|---|---|---|---|
| M8 | 1.25 | 16 | 45-8816 | 5.5MM | 12MM |
| M8 | 1.25 | 20 | 45-8820 | 5.5MM | 12MM |
| M8 | 1.25 | 25 | 45-8825 | 5.5MM | 12MM |
| M8 | 1.25 | 30 | 45-8830 | 5.5MM | 12MM |
| M8 | 1.25 | 35 | 45-8835 | 5.5MM | 12MM |
| M8 | 1.25 | 40 | 45-8840 | 5.5MM | 12MM |
| M8 | 1.25 | 45 | 45-8845 | 5.5MM | 12MM |
| M8 | 1.25 | 50 | 45-8850 | 5.5MM | 12MM |
| M8 | 1.25 | 60 | 45-8860 | 5.5MM | 12MM |
| M8 | 1.25 | 70 | 45-8870 | 5.5MM | 12MM |
| M10 | 1.25 | 20 | 45-9020 | 7MM | 14MM |
| M10 | 1.25 | 25 | 45-9025 | 7MM | 14MM |
| M10 | 1.25 | 30 | 45-9030 | 7MM | 14MM |
| M10 | 1.25 | 35 | 45-9035 | 7MM | 14MM |
| M10 | 1.25 | 40 | 45-9040 | 7MM | 14MM |
| M10 | 1.25 | 45 | 45-9045 | 7MM | 14MM |
| M10 | 1.25 | 50 | 45-9050 | 7MM | 14MM |
| M10 | 1.25 | 60 | 45-9060 | 7MM | 14MM |
| M10 | 1.25 | 70 | 45-9070 | 7MM | 14MM |
| M12 | 1.25 | 20 | 45-9220 | 8MM | 17MM |
| M12 | 1.25 | 25 | 45-9225 | 8MM | 17MM |
| M12 | 1.25 | 30 | 45-9230 | 8MM | 17MM |
| M12 | 1.25 | 35 | 45-9235 | 8MM | 17MM |
| M12 | 1.25 | 40 | 45-9240 | 8MM | 17MM |
| M12 | 1.25 | 50 | 45-9250 | 8MM | 17MM |
| M12 | 1.25 | 60 | 45-9260 | 8MM | 17MM |
| M12 | 1.25 | 70 | 45-9270 | 8MM | 17MM |
