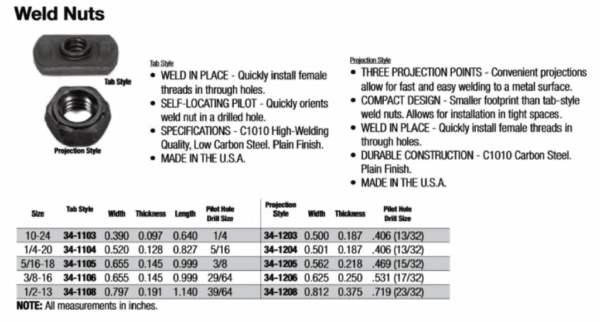

Weld Nuts – Tab & Projection Style

Weld Nuts – Tab & Projection Style

Weld Nuts – Tab & Projection Style

  • Quickly install female threads in through holes
  • Tab style includes self-locating pilot for precise alignment
  • Projection style features 3 projections for fast welding
  • Made from C1010 high-quality low carbon steel
  • Plain finish
  • Made in the U.S.A.

Tab Style Weld Nuts

Size No. Width Thickness Length Pilot Hole Drill Size
10-24 34-1103 0.390 0.097 0.640 1/4
1/4-20 34-1104 0.520 0.128 0.827 5/16
5/16-18 34-1105 0.655 0.145 0.999 3/8
3/8-16 34-1106 0.655 0.145 0.999 29/64
1/2-13 34-1108 0.797 0.191 1.140 39/64

Projection Style Weld Nuts

Size No. Width Thickness Pilot Hole Drill Size
10-24 34-1203 0.500 0.187 .406 (13/32)
1/4-20 34-1204 0.501 0.187 .406 (13/32)
5/16-18 34-1205 0.562 0.218 .469 (15/32)
3/8-16 34-1206 0.625 0.250 .531 (17/32)
1/2-13 34-1208 0.812 0.375 .719 (23/32)
