Class 10 Flange Locknuts (Black)
Class 10 Flange Locknuts – Black Finish High strength Class 10 flange locknuts Durable black finish for corrosion resistance and identification Dia. Pitch No. Hex Size M6 1.0 46-5006 10MM M8 1.25 46-5008 13MM M10 1.5 46-5010 15MM M12 1.75 46-5012 18MM
JIS Metric Class 10 Flange Nuts
JIS Metric Class 10 Flange Nuts High strength Class 10 flange nuts Zinc plated Complies with JIS B-1190 specifications Dia. Pitch No. Hex Size M6 1.0 46-4600 10MM M8 1.25 46-4601 12MM M10 1.25 46-4602 14MM

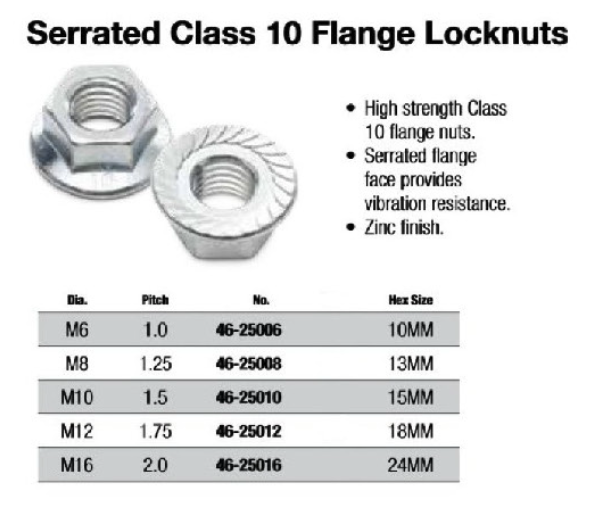

Serrated Class 10 Flange Locknuts
Serrated Class 10 Flange Locknuts High strength Class 10 flange nuts Serrated flange face offers vibration resistance Zinc finish Dia. Pitch No. Hex Size M6 1.0 46-25006 10MM M8 1.25 46-25008 13MM M10 1.5 46-25010 15MM M12 1.75 46-25012 18MM M16 2.0 46-25016 24MM
Class 10 Flange Nuts
Class 10 Flange Nuts High strength Class 10 flange nuts Zinc plated finish Dia. Pitch Zinc No. Hex Size M6 1.0 46-15006 10MM M8 1.25 46-15008 12MM M10 1.5 46-15010 15MM M12 1.75 46-15012 18MM M14 2.0 46-15014 21MM M16 2.0 46-15016 24MM M20 2.5 46-15020c 30MM

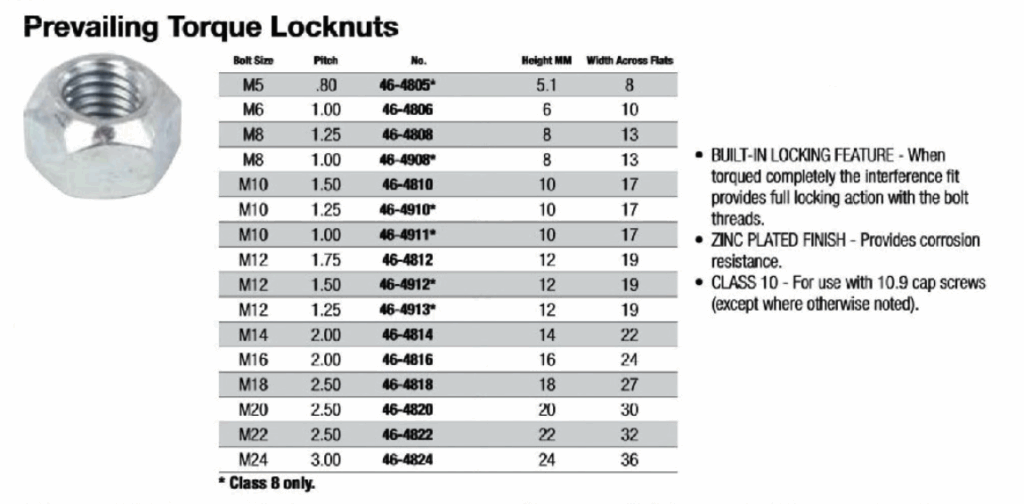

Prevailing Torque Locknuts
Metric Prevailing Torque Locknuts – Class 10 Built-in locking feature ensures secure torque fit with bolt threads Zinc plated finish for corrosion resistance Designed for use with Class 10.9 cap screws (unless otherwise noted) Bolt Size Pitch No. Height (mm) Width Across Flats M5 .80 46-4805* 5.1 8 M6 1.00 46-4806 6 10 M6 1.25 […]

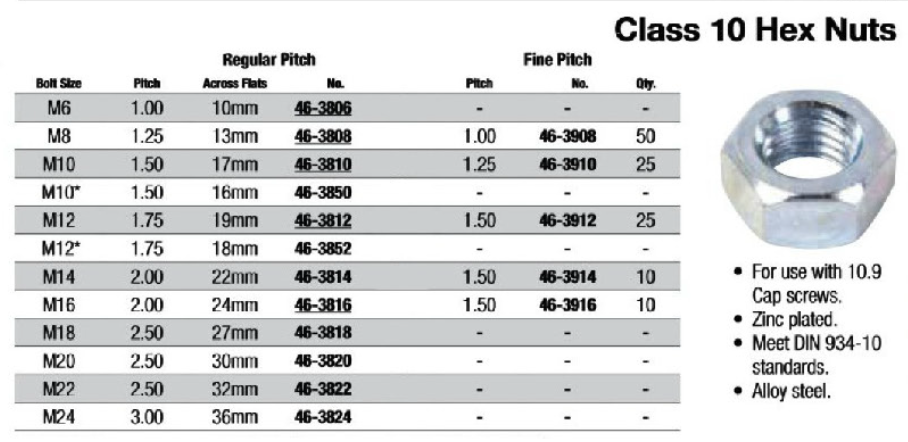

Class 10 Hex Nuts Metric
Class 10 Hex Nuts Engineered for use with Class 10.9 cap screws Meets DIN 934-10 standards for strength and performance Available in regular and fine thread pitch options Zinc plated to resist corrosion and wear Manufactured from high-strength alloy steel Bolt Size Pitch (Regular) Across Flats Part No. (Regular) Pitch (Fine) Part No. (Fine) Qty […]
Class 10 Nylon Insert Lock Nuts
Class 10 Nylon Insert Lock Nuts High-strength locking nut with nylon insert Prevents loosening due to vibration Steel body, zinc plated for corrosion protection Available in regular, fine, and very fine pitch options Designed for high-performance and industrial applications Bolt Size Pitch No. (Reg) Fine Pitch No. (Fine) Very Fine Pitch No. (VFP) Width Across […]

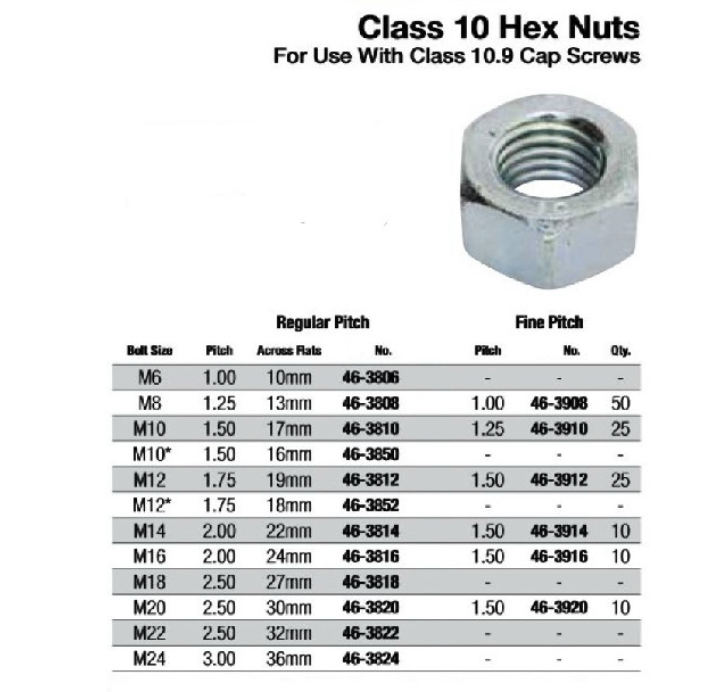

Class 10 Hex Nuts
Class 10 Hex Nuts For use with 10.9 Cap Screws Zinc plated for corrosion protection Meets DIN 934-10 standards Made from high-strength alloy steel Bolt Size Pitch Width Across Flats No. (Regular Pitch) Pitch (Fine) No. (Fine Pitch) M6 1.00 10mm 46-3806 1.00 46-3906 M8 1.25 13mm 46-3808 1.00 46-3908 M10 1.50 17mm 46-3810 1.25 […]

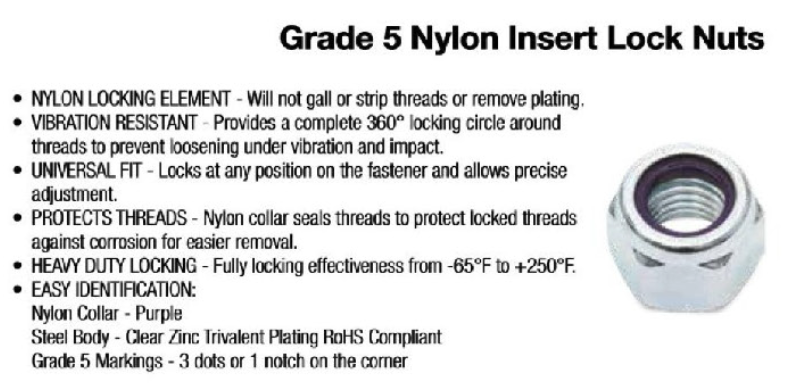

Grade 5 Nylon Insert Lock Nuts
Grade 5 Nylon Insert Lock Nuts Nylon locking element will not gall or strip threads or remove plating Provides 360° locking effectiveness against vibration and impact Locks at any position on the fastener for universal fit Nylon collar seals and protects threads from corrosion Full locking effectiveness from -65°F to +250°F Easy identification: Nylon Collar: […]

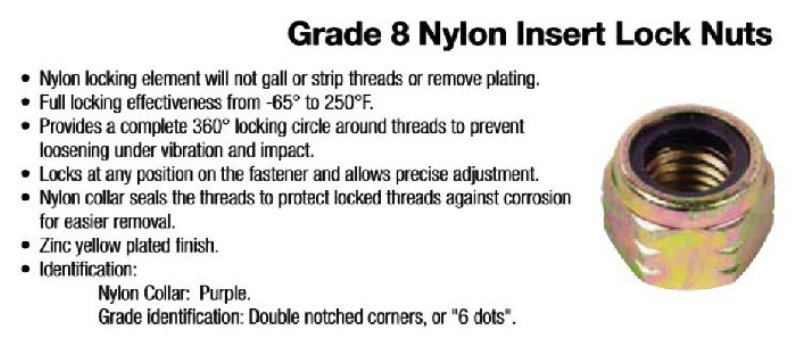

Grade 8 Nylon Insert Lock Nuts
Grade 8 Nylon Insert Lock Nuts Nylon locking element will not gall or strip threads or remove plating Full locking effectiveness from -65°F to 250°F Provides a complete 360° locking circle to prevent loosening under vibration and impact Locks at any position on the fastener for precise adjustment Nylon collar seals threads and protects locked […]
