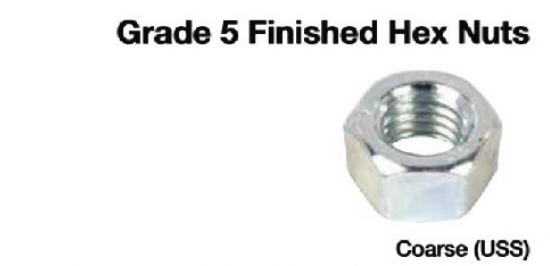

Grade 5 Finished Hex Nuts
Grade 5 Finished Hex Nuts Conforms to Grade 5 mechanical properties Available in Zinc Finish or Plain Finish Marked with approved Grade 5 identification: Old Style: Dot and dash 120° apart New Style: Two circumferential lines 120° apart Variation: Zinc Finish (Coarse Thread – USS) Size No. Qty Alt No. Width Across Flats Thickness 1/4-20 […]

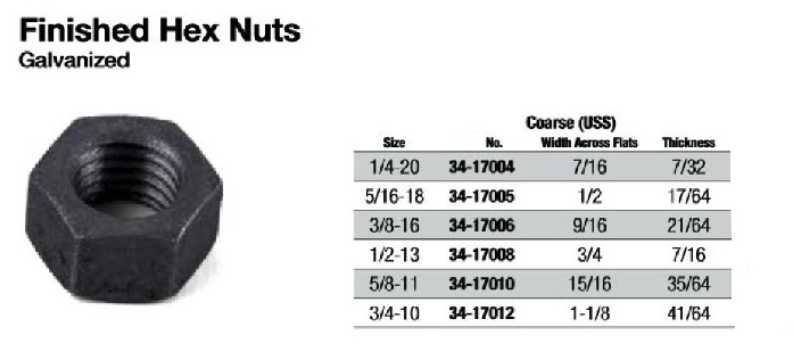

Finished Hex Nuts – Galvanized
Finished Hex Nuts – Galvanized HOT-DIP GALVANIZED – Provides superior corrosion protection in demanding environments Finished faces for full seating Meets A563A specification for use with Grade 2 Hot-Dip Galvanized fasteners Made in the U.S.A. Size No. Width Across Flats Thickness 1/4-20 34-17004 7/16 7/32 5/16-18 34-17005 1/2 17/64 3/8-16 34-17006 9/16 21/64 1/2-13 34-17008 […]

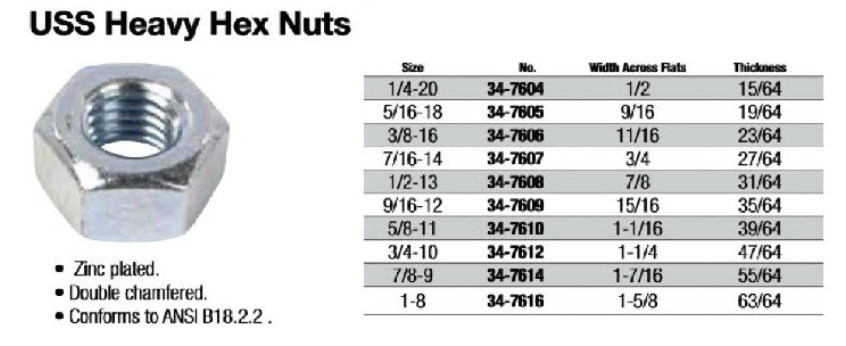

USS Heavy Hex Nuts
USS Heavy Hex Nuts Zinc plated Double chamfered Conforms to ANSI B18.2.2 Size No. Width Across Flats Thickness 1/4-20 34-7604 1/2 15/64 5/16-18 34-7605 9/16 19/64 3/8-16 34-7606 11/16 23/64 7/16-14 34-7607 3/4 27/64 1/2-13 34-7608 7/8 31/64 9/16-12 34-7610 15/16 39/64 5/8-11 34-7611 1-1/16 39/64 3/4-10 34-7612 1-1/4 47/64 7/8-9 34-7614 1-7/16 55/64 1-8 […]
Machine Screw Nuts
Machine Screw Nuts Chamfered Zinc plated Size No. Width Across Flats Thickness 6-40 34-7000 1/4 3/32 8-32 34-7002 11/32 7/64 10-24 34-7003 3/8 1/8 10-32 34-7103 3/8 1/8 12-24 34-7102 7/16 5/32 1/4-20 34-7004 7/16 3/16

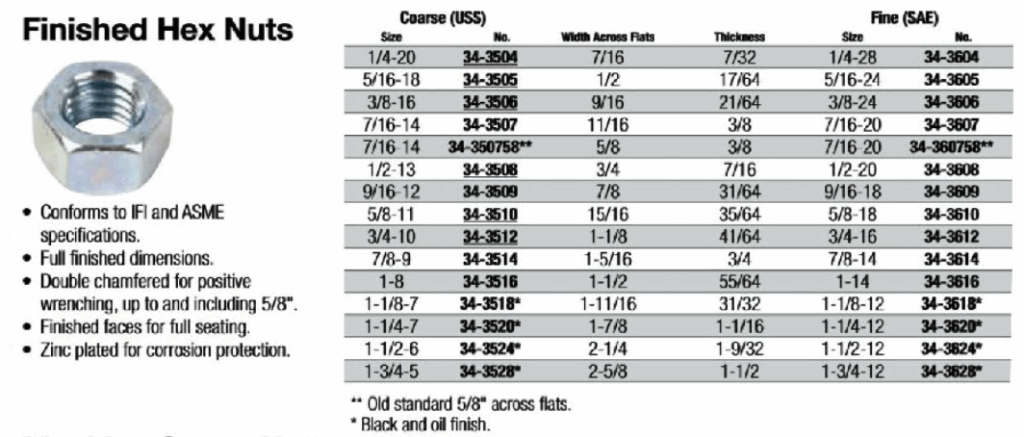

Finished Hex Nuts
Finished Hex Nuts Conforms to IFI and ASME specifications Full finished dimensions Double chamfered for positive wrenching, up to and including 5/8″ Finished faces for full seating Zinc plated for corrosion protection Available Sizes – Coarse (USS) Size No. Width Across Flats Thickness 1/4-20 34-3504 7/16 7/32 5/16-18 34-3505 1/2 17/64 3/8-16 34-3506 9/16 21/64 […]

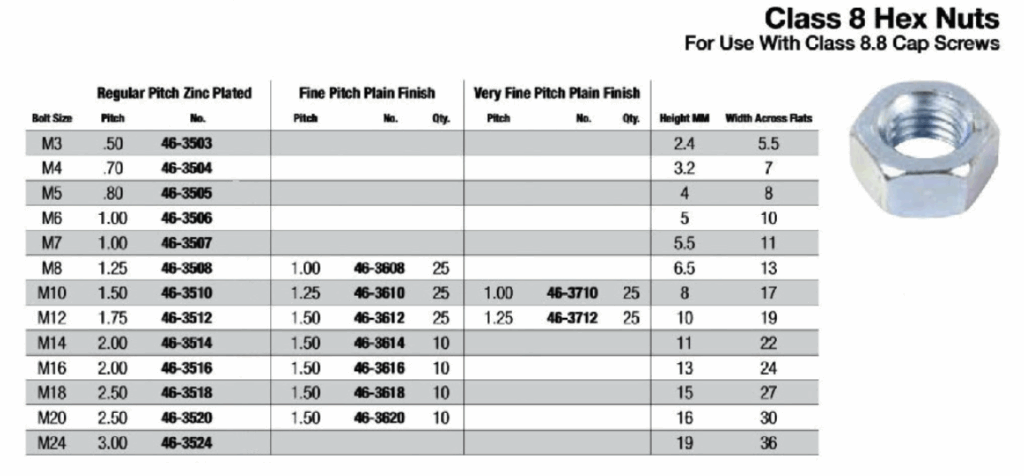

Class 8 Plain Hex Nuts
Class 8 Hex Nuts Use With: Class 8.8 Cap Screws Available in Regular, Fine, and Very Fine Pitch Options: Zinc plated and plain finish Conforms to ISO and DIN standards Regular & Fine Pitch Hex Nuts Bolt Size Pitch Zinc Plated # Fine Pitch # Very Fine Pitch # Height (MM) Width Across Flats M3 […]

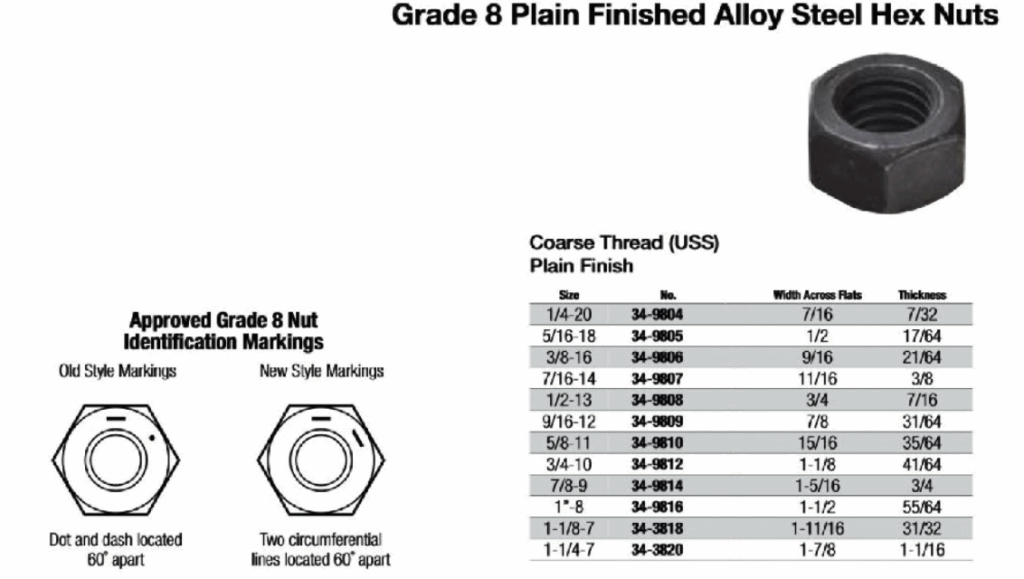

Grade 8 Plain Finished Alloy Steel Hex Nuts
Grade 8 Plain Finished Alloy Steel Hex Nuts Thread Type: Coarse (USS) Plain finish for maximum strength and authenticity Conforms to ANSI B18.2.2 and SAE J995 Grade 8 Ideal for applications where coating is not needed Size Part # Width Across Flats Thickness 1/4-20 34-9804 7/16 7/32 5/16-18 34-9805 1/2 17/64 3/8-16 34-9806 9/16 21/64 […]
Grade 8 Alloy Steel Hex Nuts
Grade 8 Alloy Steel Hex Nuts Thread Types: Coarse (USS), Fine (SAE) High-strength alloy steel hex nuts Available in coarse and fine threads Conforms to SAE J995 Grade 8 standards Zinc plated for corrosion resistance Available in various sizes from 1/4″ to 1-1/2″ Coarse Thread (USS) Size Part # (Qty 100) Part # (Qty 50) […]

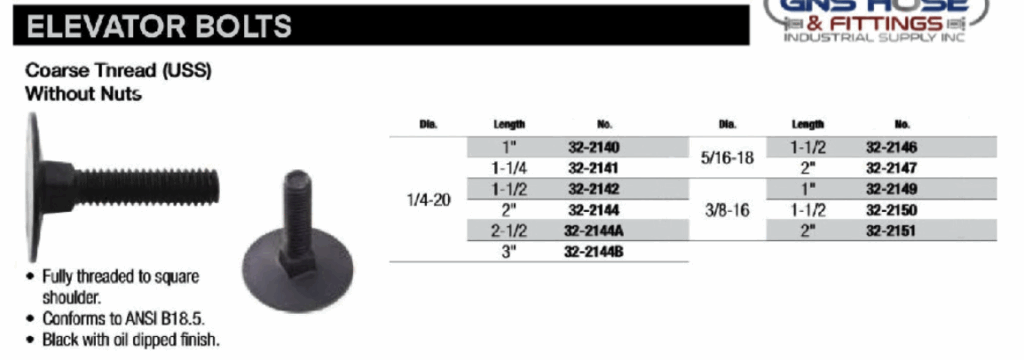

Elevator Bolts
Elevator Bolts – Coarse Thread (USS) Designed for secure fastening in applications like elevators, these bolts are available in multiple finishes and head types. All conform to ANSI B18.5 standards and feature square shoulders for a strong grip. Variants include black oil dipped, zinc plated, anti-rotational, and large head styles. Product Information Thread Type: Coarse […]

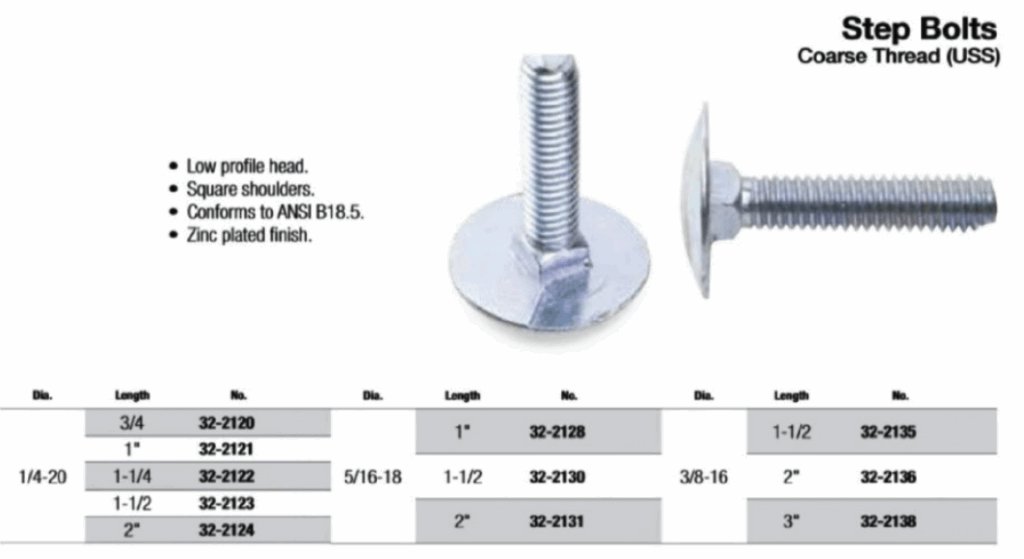

Step Bolts
Step Bolts – Coarse Thread (USS) Step bolts feature a low-profile head and square shoulders for enhanced grip and surface contact. Zinc-plated for corrosion resistance and manufactured to meet ANSI B18.5 standards. Product Details Thread: Coarse Thread (USS) Design: Low profile head with square shoulders Standard: ANSI B18.5 Finish: Zinc plated Part Numbers & Size […]
